Import KML files in 3ds max

Importing and exporting KML files in 3ds max makes it a tad easier to reuse work done in 3ds max in maps and google earth. Using 3ds max to create maps isn’t a very obvious choice however. Max handles large distances pretty bad. If you want to respect geographical projections or UTM-coordinates, we need to think of a trick to make sure the maps are being displayed accurately. The KMLparser does just that.

Get the KMLparser script here

Check out this short video-tutorial (no sound)

The script lets you import and export geo-referenced KML-files

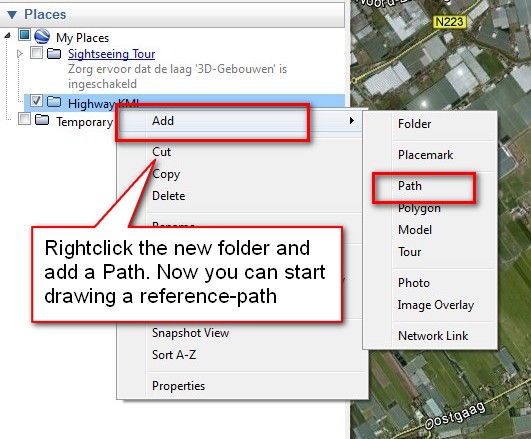

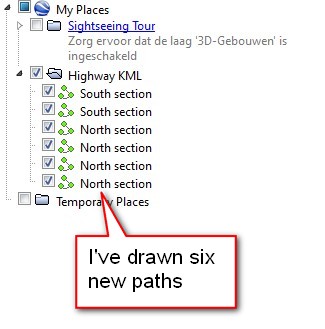

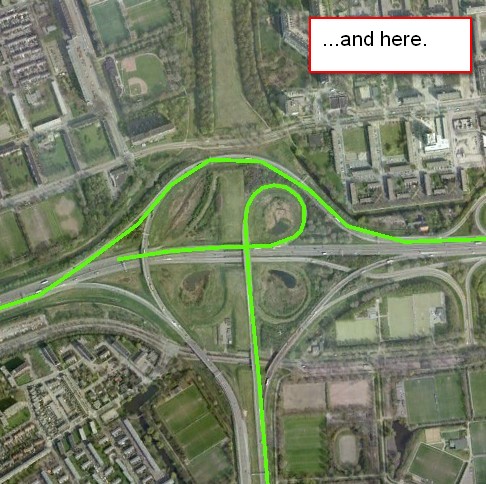

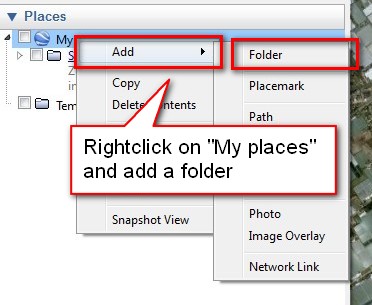

Use shapes drawn in Google earth as a reference

KML files have been created by google. They use it to store data in a geographical manner. You can load and save KML-files from google earth, but there are many more applications that support KML-files. Tilemill is one of them, as well as sketchup. At the moment the KMLparser maxscript supports paths and polygons. These are open and closed shapes. I intend to add support for 3D geometry in a later stage.

KML-files store geographical positions in latitude/latitude coordinates. These are angular coordinates on a globe. 3ds max uses an x/y coordinate system on a flat plane. When importing a KML-file these coordinates need to be converted between lat/long and UTM. UTM coordinates are coordinates on a flat plane. These are calculated for a specific UTM-zone. This means you need to know the UTM-zone your map is in. You can have the script calculate the UTM zone for you. This works fine except for a few edge cases. In those cases you can enter the UTM zone manually. You can find this UTM-zone on a map provided with the script, or with an online resource. There are 60 zones in total.

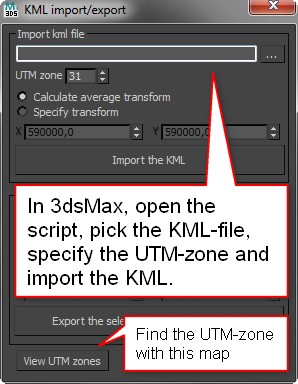

Pick a UTM zone to make sure your objects match their locations correctly

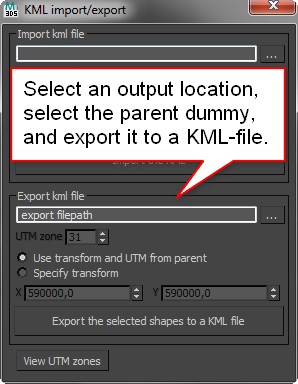

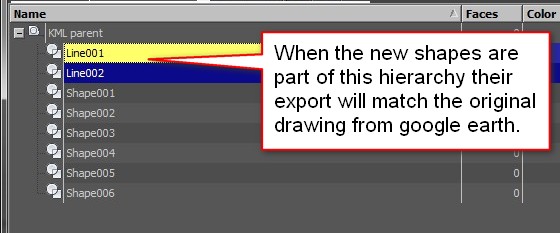

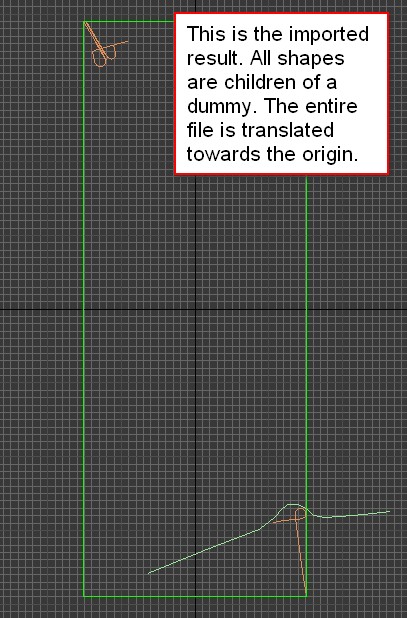

After converting the coordinates, the shapes are moved towards the origin in 3ds max. This is done to avoid large distances between the objects and the origin as 3ds max handles these distances badly. The script can calculate this offset itself, or you can input an offset. Only use a custom offset if you know what you’re doing! The imported objects remember their offset. this helps when exporting the shapes back to a KML. This data is stored in a KML map helper-parent to which all imported shapes have been linked.

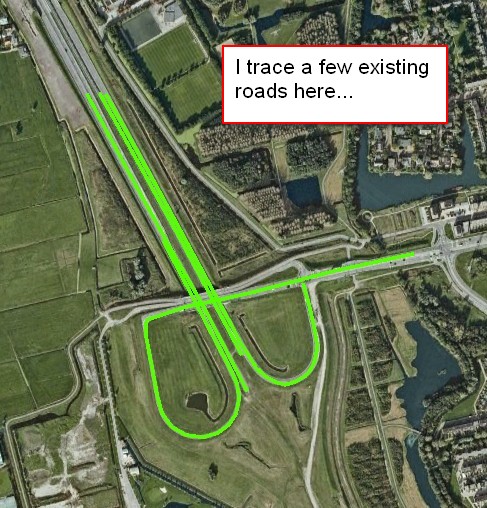

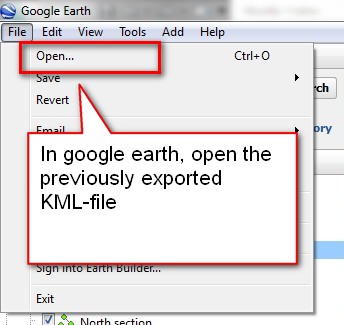

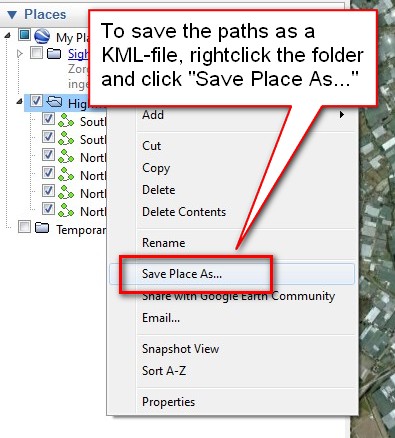

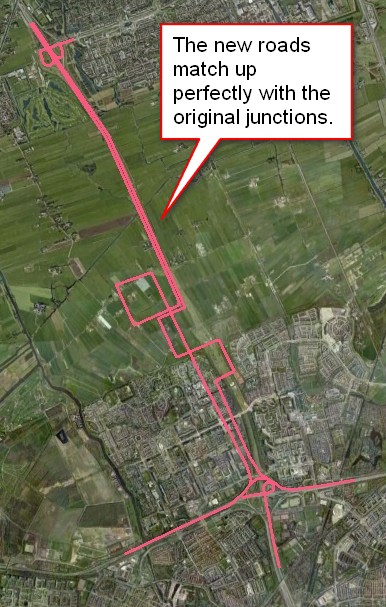

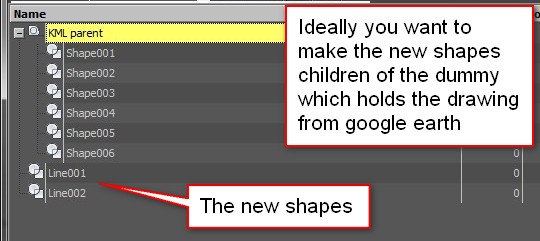

Let’s say you have to draw a map of a new road, but you already have a 3D model of that road. How do you get a shape from that model to the right location in google earth? You can draw some existing roads in google earth and save them as an kml. Import the kml-file in 3ds max. Draw the new road on top of the imported shapes and make sure they fit nicely. After that you can attach the new roads to the parent dummy and export that back to KML. Finally open that KML in google earth and voila: the new road is there!

This script uses some ideas from a kml-importer by Mario Morais

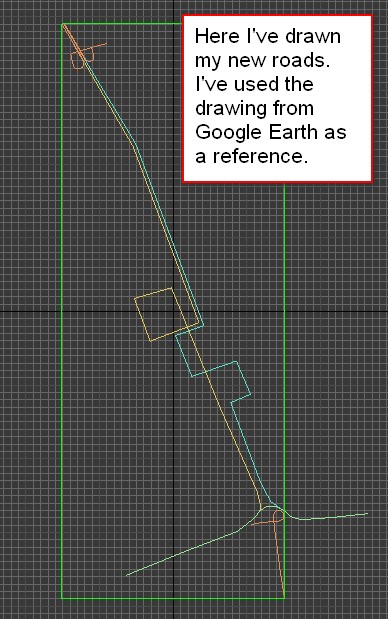

In 3ds Max you can draw shapes with the imported KML-file as a reference

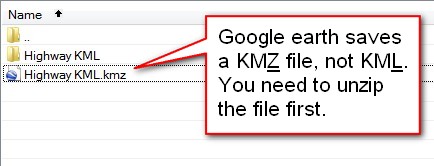

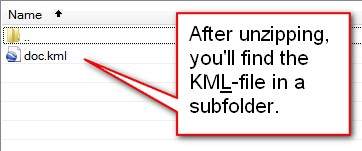

Check out this image gallery which describes the process step by step.
