Renderitis v008 update

Renderitis for 3dsMax just received an update to version 008. The main new feature is the integration of the common environment settings into a preset. This also includes any texturemap applied to environmentmap slot. Besides that some overal fixes and cleanup have been made.

Environmentsettings are now part of a preset

Renderitis script

Last modified on 2012-02-02 13:09:26 GMT. 0 comments. Top.

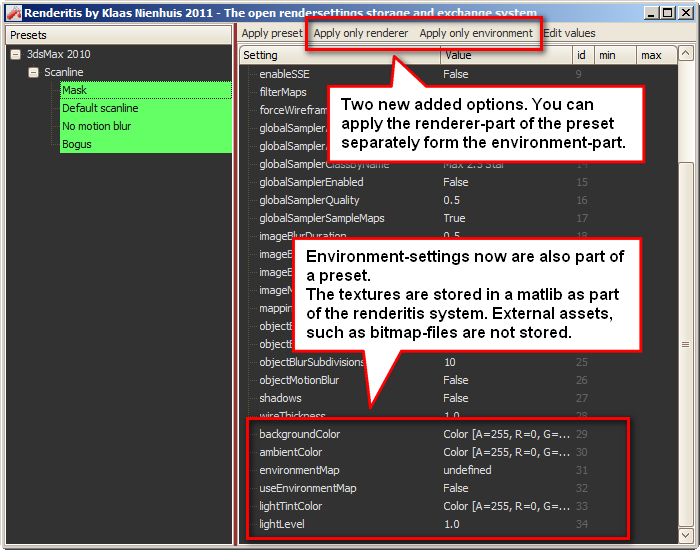

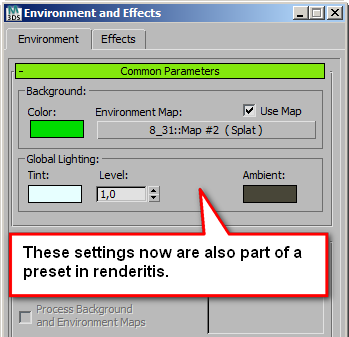

Environmentsettings now are part of every preset

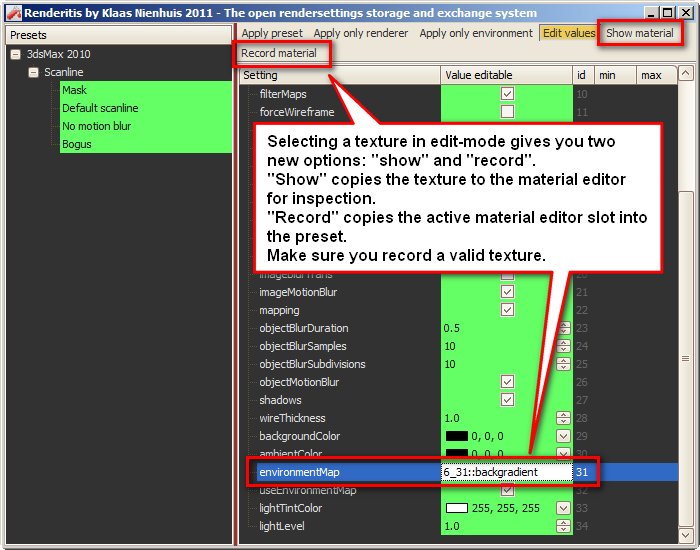

Get and set the texturemaps

Any texture applied to the environment slot can be stored in a preset. The texture is stored in a material library as part of the renderitis system. Any external assets however stay where they are. So if you use a bitmap as an environmentmap, the bitmaptexture is stored in the matlib but the actual image file stays where it is. So it’s still important to keep track of your assets. I might change this in the future however. When applying the preset to the scene, you can choose to apply the entire preset or either the renderer-part or the environment-part of the preset.

Having this feature now makes it easier to implement other renderengines. Engines such as vray contain texutres and materials. Having the matlib-support will speed up the implementation of at least one extra render-engine in the near future.

Adding these new features made me aware that I need to do some work on the gui. The amount of option popping in and out of the gui is a very bad thing. This will confuse the user very quickly.

Future development is planned:

• multiple-user/studio mode. Share a single preset across multiple users over a network
• rights-management: some users may edit a preset, others can only view and apply the preset
• support for more renderengines and maxversions
• better gui-design
