I’ve watched the demo Damian Nenow gave about Paths of Hate by Platige Image. He shows some of the shots made for this short and he shows the breakdown of a few of them. It’s about two WWII fighterplanes battling between the clouds. The short is very stylized and look great but a major player in this movie are the clouds. They look realistic yet fit the cartoon-look of the movie. Damian shows us how he made these clouds in like 10 seconds. I’ve tried to follow his tutorial. This is my take on them. Although mine don’t look as nice, I think I’ve got the theory in place and have some decent looking clouds which render very fast. Watch the Siggraph 2011 movie here

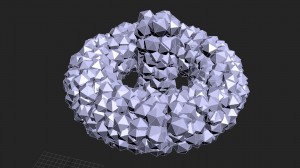

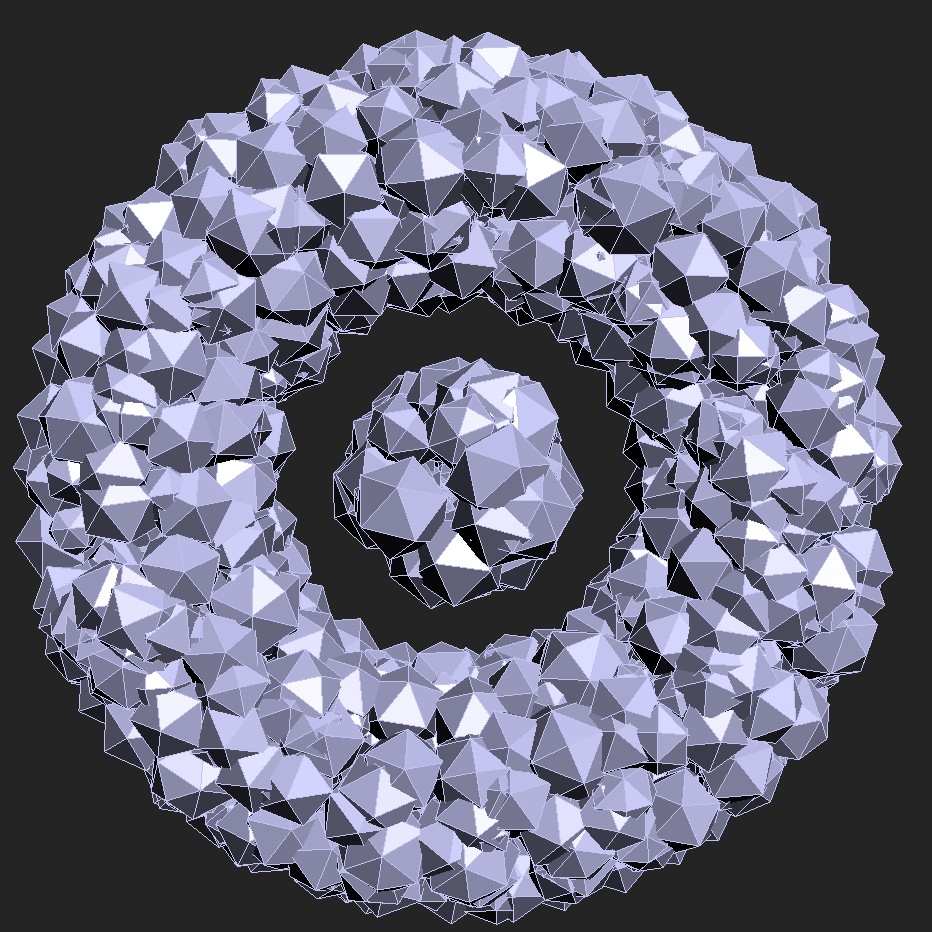

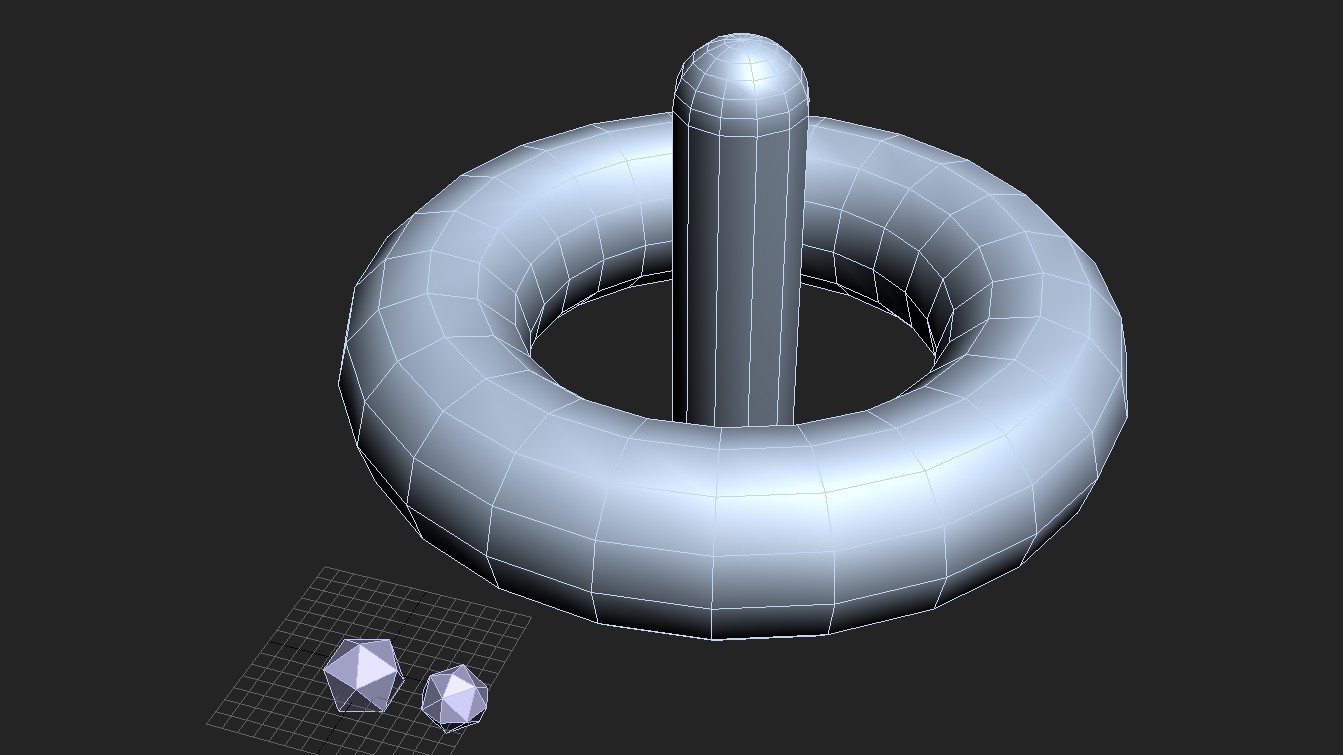

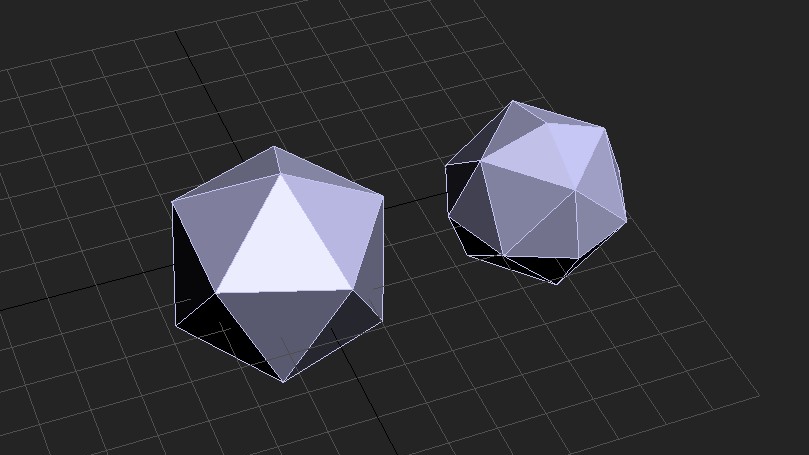

- you create a cloud-shaped mesh and light it with direct lights and GI.
- bake this light to a texture and transfer the baked texture to the vertex-color channel with a vertex-paint modifier.
- use either multiple vertexpaint modifiers or the translucency modifier by Grant Adam to fake the subsurface-scattering look of the clouds.
- Scatter a lot of planes on the cloud-mesh. Use a nice opacitymap on the scattered planes.
- transfer the vertex-color of the cloud-mesh to the vertex-color of the scattered planes using a projection-modifier.
- And you’re done.

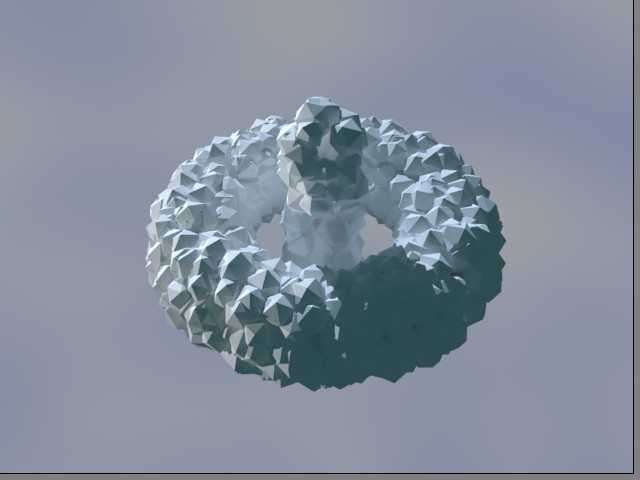

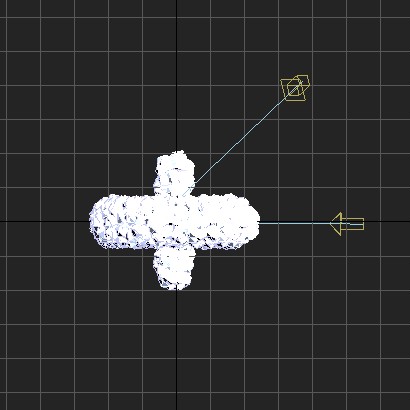

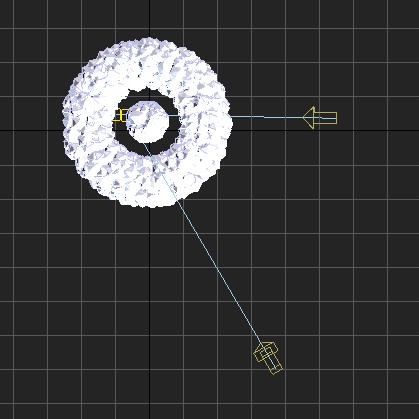

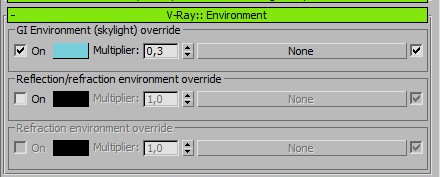

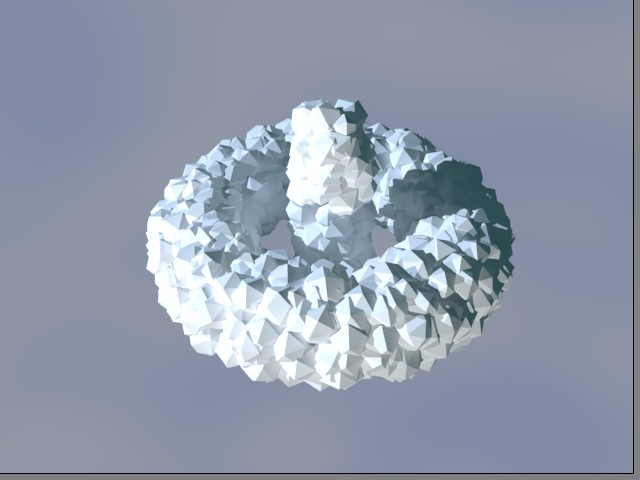

Then you need to light the cloud-mesh. I’m using Vray to render and use two direct-lights with a slight blue tint. You want to give your clouds quite some contrast since this will help get the subsurface-scattering look.

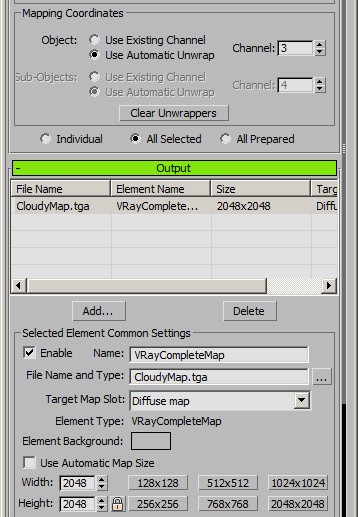

Then you want to bake this lighting to a texture. I Use a vraycompletemap and use the automatic unwrapping settings. I store the texture in the diffuse channel. These are all pretty standard settings.

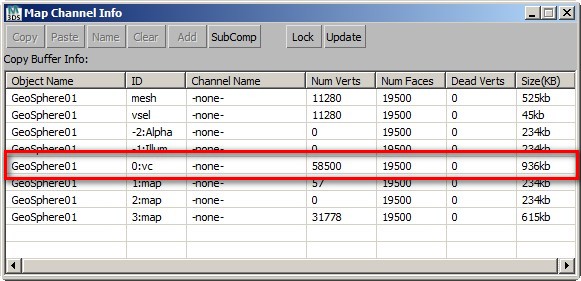

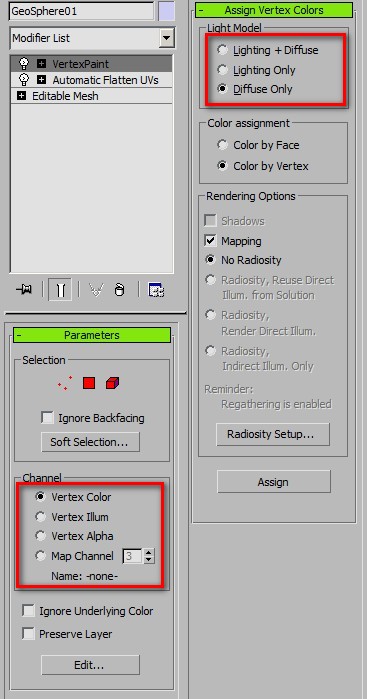

Now comes a nice trick. This one’s new for me. You transfer the lighting in the texture to the vertex color. Add a vertexpaint modifier to the object and make sure the options are set like the screenshot. You are transferring bitmap-colors into the vertex Color channel. You’re only transferring the diffuse map (the one we just baked). Press the “Assign” button. You’ll see a progressbar to indicate the progress.

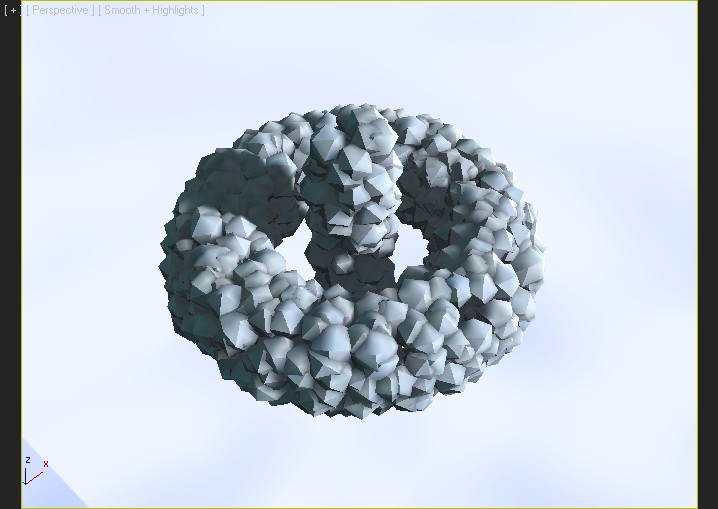

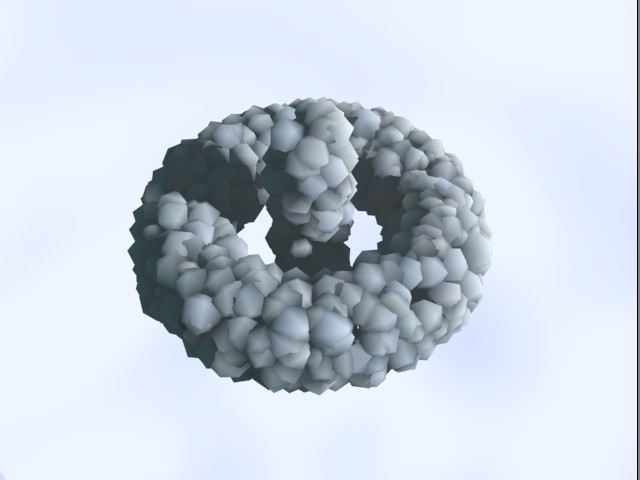

this is the result when you render the vertex color. To do this, get rid of all your lights and switch to the scanline renderer. Then assign a new material to your cloud-mesh and put a “Vertex Color” texturemap in the diffuse channel. In the texturemap, make sure that you use channel 0. Also make the material 100% self illuminating.

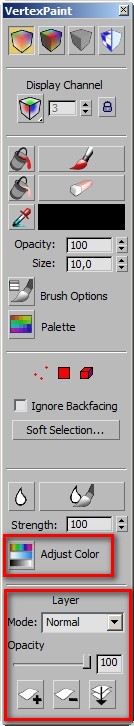

You can add multiple vertex paint modifiers to change the look of the colors. It works just like photoshop, there are blending modes, you can change the opacity of the layer and adjust the levels and colors. Alternatively, Damian uses a translucency modifier by Grant Adam. Find it here. Essentially you’re recreating the sss-look of the clouds here

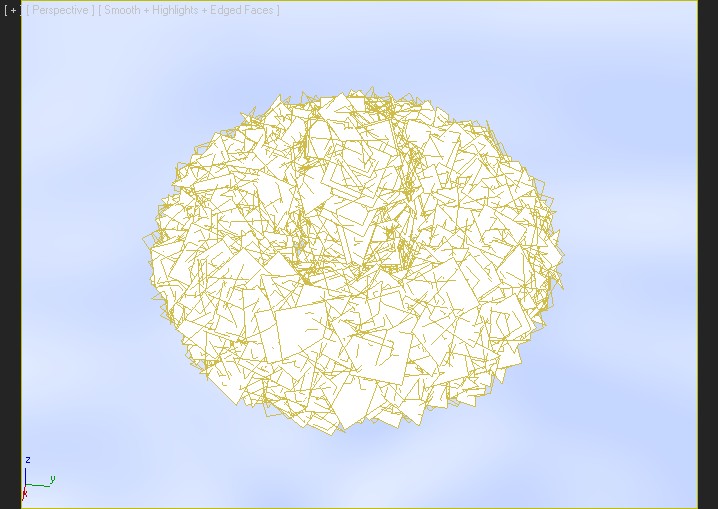

The cloud-mesh will serve as a base for the sprites. Give the sprites a nice opacitymap. By using the right opacitymap you can control the amount of stylization of the final clouds. I used scatter again to scatter a lot of planes on my mesh. You need to get a dense look. I had about 4500 planes in this example.

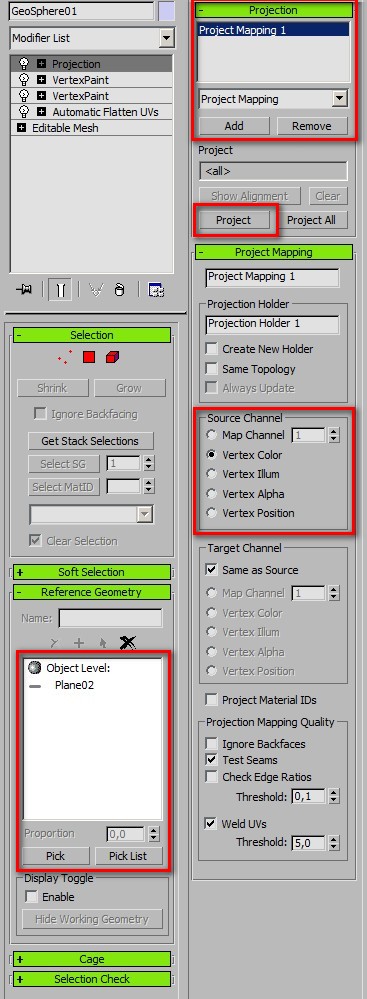

To get the color from the clouds, you need to transfer the vertex-color of the cloud-mesh to the sprites. You use a projection modifier for that. Add the modifier to the cloud-mesh. Pick the sprites as reference geometry (collapse that to a single mesh first). In the projection rollout, press “add”. In the source channel group, pick the “Vertex color” option. Finally press “Project”. This will transfer the colors from the cloud-mesh to the sprites.

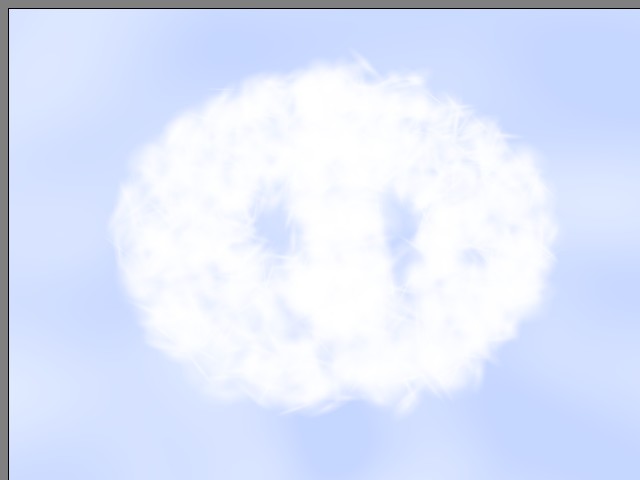

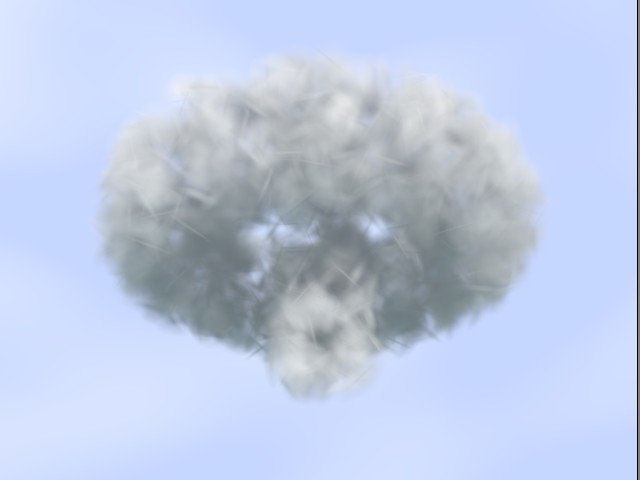

Almost done. To render them, place a “Vertex color” texturemap in the diffuse channel of the collapsed sprites. You still have the opacitymap, so that’s good. Also set the material to 100% self illuminating. Now you can render with scanline without any lights. Damian already said it: it’s very fast.
Finally, as a reaction to some comments, I’ve tried to apply a falloff to the opacity channel of the cloud material to make the cloud appear softer. It’s a perpendicular/parallel map. The perpendicular part is the cloud-texture, a noise map in my case, the parallel part is a black color. This means that if I’m looking at the side of on of the cloud-planes the material makes it transparent. this actually makes the look of the clouds much smoother and less feathery.

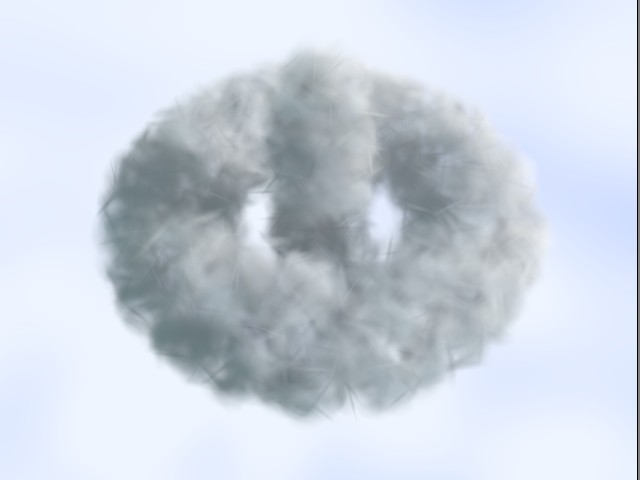

This cloud has a falloff map applied to the opacitychannel. It looks more fluffy and less feathery
